What Is a D-Shaped Toilet and How Do You Identify One?



A D-shaped toilet is a toilet pan with a relatively straight or flatter rear section, straighter sides and a rounded front when viewed from above.

The overall outline resembles a capital letter D, which is where the name comes from.

Knowing your toilet shape is useful when replacing a toilet seat or adding a bidet seat because D-shaped, O-shaped and other toilet profiles are not automatically interchangeable.

However, shape is only the first compatibility check.

A toilet can look D-shaped and still have different dimensions, mounting-hole positions and rear clearance from another D-shaped toilet.

Quick Answer: What Does a D-Shaped Toilet Look Like?

When viewed directly from above, a typical D-shaped toilet has:

• a relatively straight or flatter rear section
• straighter sides than a traditional round toilet
• a curved or rounded front
• a profile resembling the letter D

A D-shaped toilet should not automatically be described as a square-front toilet.

A square-profile toilet may have a noticeably flatter front edge, while a typical D-shape retains a rounded front.

Because manufacturers use different proportions, the safest approach is to identify the general shape and then confirm it using measurements.

Why Does Toilet Shape Matter?

Toilet shape matters because replacement toilet seats and bidet seats are designed around specific pan profiles.

A seat that does not match the toilet correctly may:

• overhang the ceramic pan
• leave excessive gaps
• sit too far forward or backward
• fail to align correctly with the mounting points
• feel unstable
• position the seat opening incorrectly

This means that choosing a seat based only on features or appearance can cause compatibility problems.

The better approach is:

Identify the toilet shape → measure the toilet → compare the product specifications → confirm installation requirements.

What Is the Difference Between a D-Shaped and O-Shaped Toilet?

The easiest way to understand the difference is to look at the toilet from directly above.

Toilet shape	General appearance
D-shape	Relatively straighter rear and sides with a rounded front
O-shape	More continuously rounded or oval around the pan
Square profile	More angular design, often with a noticeably flatter front

The terms can sometimes be used inconsistently by retailers or manufacturers.

For this reason, the actual measurements of the toilet are more reliable than the shape name alone.

How Do I Know If My Toilet Is D-Shaped?

Start by looking at your toilet from directly above.

Ignore the cistern and focus on the outline of the toilet pan and existing seat.

If the back section is relatively straight, the sides remain fairly straight before curving into a rounded front, the toilet may have a D-shaped profile.

Next, compare the shape with the seat you are considering.

Do not stop at visual identification.

You should also measure:

Overall width — the widest part of the toilet pan.

Overall length — from the relevant rear mounting area toward the front edge.

Mounting-hole spacing — the distance between the toilet-seat fixing points.

Mounting position — where the fixing holes sit in relation to the front of the pan.

Rear clearance — the available space between the mounting area and the cistern or wall.

These measurements help determine whether a particular replacement seat is physically compatible.

Is a D-Shaped Toilet the Same as a Square Toilet?

No.

A D-shaped toilet and a square-profile toilet can look similar, particularly in modern bathrooms, but the terms should not automatically be treated as identical.

A typical D-shaped toilet has a rounded front combined with straighter sides and a flatter rear profile.

A square-profile toilet generally has more angular lines and may have a noticeably flatter front.

Some toilet designs sit somewhere between these descriptions.

That is why buying a toilet seat based only on a label such as "D-shape", "square" or "modern toilet" can be unreliable.

Measurements should always be checked.

Do All D-Shaped Toilet Seats Fit All D-Shaped Toilets?

No.

"D-shape" describes the general geometry of the toilet. It does not define one universal size.

Two D-shaped toilets can differ in:

• width
• length
• mounting-hole spacing
• mounting-hole position
• curvature
• rear clearance
• ceramic design

As a result, a seat designed for one D-shaped toilet may not necessarily fit another.

This is particularly important when installing a bidet seat because the seat contains additional components that need to align correctly with the toilet.

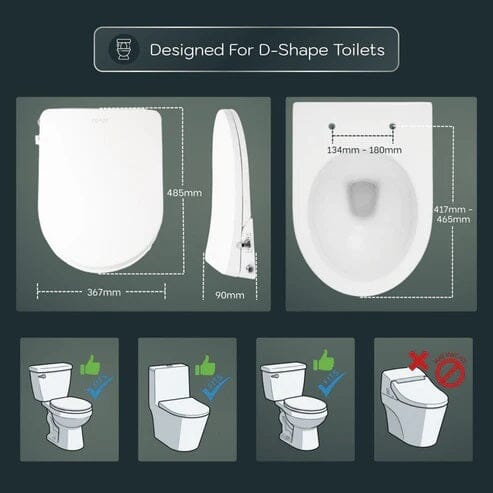

How Do You Measure a D-Shaped Toilet for a Replacement Seat?

Use your existing toilet as the reference rather than relying only on the dimensions of the old seat.

Measure the Width

Measure across the widest section of the toilet pan.

Measure the Length

Measure from the seat-mounting area toward the front edge of the pan.

Measure the Fixing Holes

Measure the distance from the centre of one mounting hole to the centre of the other.

Check the Rear Space

Look at how much room is available behind the mounting holes.

This can matter when fitting replacement or bidet seats with mounting plates.

Compare With the Product Specifications

Once you have the measurements, compare them with the dimensional information supplied for the seat.

The fact that both products are described as D-shaped is not enough on its own to confirm compatibility.

Can You Put an O-Shaped Seat on a D-Shaped Toilet?

You should not assume that an O-shaped seat will correctly fit a D-shaped toilet.

An O-shaped seat is designed around a more continuously curved pan profile.

Installing one on a substantially different toilet shape can result in poor alignment, overhang or gaps.

The same principle works in reverse: a seat designed for a D-shaped toilet should not automatically be assumed to fit an O-shaped pan.

If your toilet has a rounded profile, compare it with a compatible O-Shape bidet seat rather than selecting by appearance alone.

Why Is Shape Especially Important for a Bidet Seat?

A standard toilet seat mainly needs to align with the toilet pan and mounting points.

A bidet seat has additional components, including the cleansing mechanism, nozzle and water connection.

Correct positioning therefore matters.

Before selecting one, check:

• pan shape
• toilet dimensions
• fixing points
• available rear clearance
• water connection
• seat specifications

For example, Conor's Elara D-Shape model is designed for compatible D-shaped toilet pans, but the current product specifications still recommend checking the toilet's dimensions and fixing points before ordering.

You can view the Conor Elara D-Shape model for the current product dimensions and compatibility information.

Does D-Shape Mean Electric or Non-Electric?

No.

D-shape describes physical shape, not bidet technology.

A D-shaped bidet seat can be either non-electric or electric, depending on the product.

A non-electric model generally uses household water pressure and mechanical controls.

An electric or smart model can add powered functions such as heated seating, warm-water washing, electronic controls and warm-air drying.

So there are two separate decisions:

1. What shape fits the toilet?

and

2. What bidet technology and features do you want?

If you're specifically researching powered models for this toilet profile, read our D-shape electric bidet seat fit guide.

What If I'm Not Sure About My Toilet Shape?

If you are unsure, do not order a seat based on a guess.

Take a clear photograph of the toilet from directly above and record the relevant measurements.

The top-down photograph helps identify the general shape, while the measurements provide much stronger compatibility information.

The key information to have ready is:

• overall width
• overall length
• fixing-hole spacing
• fixing-hole position
• rear clearance
• water inlet location if fitting a bidet seat

Using both a photograph and measurements is more reliable than relying on terms such as "modern", "square" or "D-shaped".

Does the Water Inlet Affect Toilet Shape?

No.

The water inlet does not determine whether the toilet is D-shaped or O-shaped.

Toilet shape describes the physical profile of the pan.

The water inlet is a separate installation consideration.

For a bidet seat, both need to be checked:

Toilet shape and measurements determine physical compatibility.

Water-inlet position and plumbing requirements affect installation.

Do not use the water connection to determine which toilet shape you have.

Do D-Shaped Toilets Require a Special Type of Bidet?

They require a bidet seat whose physical dimensions and mounting configuration are compatible with the toilet.

That does not mean every product carrying the words "D-shape" will fit.

The safest sequence is:

1. identify the pan profile
2. measure the toilet
3. compare those measurements with the product
4. check mounting clearance
5. check the water connection
6. review installation requirements

For a water-powered option, you can compare the specifications of the Elara D-Shape model.

For powered models, use the D-shape electric bidet seat compatibility guide.

What Should Australians Check Before Installing a Bidet Seat?

A bidet seat connects to the household water supply, so product certification and plumbing requirements also matter.

In Australia, bidet douche seats are included in the WaterMark Schedule of Products.

Before installation, check that the specific product is appropriately certified and review its current installation requirements.

Installation of applicable WaterMark plumbing products should be completed by an appropriately licensed plumbing practitioner in accordance with Australian requirements.

Shape compatibility and plumbing compliance are separate checks: a seat can physically fit a toilet but still need the correct plumbing installation.

Frequently Asked Questions

What is a D-shaped toilet?

A D-shaped toilet generally has a relatively straight rear profile and sides that transition into a rounded front when viewed from above. The outline resembles the capital letter D.

How can I tell if my toilet is D-shaped?

Look at the toilet directly from above. Check for a relatively straight rear section, straighter sides and a rounded front. Then measure the toilet because visual shape alone cannot confirm seat compatibility.

Is a D-shaped toilet the same as a square toilet?

No. D-shaped toilets normally retain a rounded front, while square-profile toilets tend to be more angular and may have a flatter front.

Do all D-shaped toilet seats fit all D-shaped toilets?

No. Toilets within the same shape category can have different widths, lengths, fixing-hole positions and clearances.

What measurements do I need for a replacement toilet seat?

Check overall width, overall length, fixing-hole spacing, mounting position and available rear clearance. Compare these measurements with the specifications of the replacement seat.

Can an O-shaped seat fit a D-shaped toilet?

You should not assume that the two shapes are interchangeable. The shape and product measurements should both match the existing toilet.

Is D-shape only used for non-electric bidet seats?

No. D-shape describes the seat's physical profile. Both non-electric and electric bidet seats can be designed for compatible D-shaped toilets.

Does toilet shape determine which water inlet I need?

No. Toilet shape and water-inlet position are separate considerations. Check both when selecting and installing a bidet seat.

Does a D-shaped bidet seat require electricity?

Not necessarily. Some D-shaped models are non-electric, while others are electric or smart bidet seats.

Should I measure my toilet even if I know it is D-shaped?

Yes. Shape identifies the general category, but dimensions determine whether a particular seat is likely to fit correctly.

The Key Point: Identify the Toilet Before Choosing the Seat

"D-shape" is a useful starting point, but it is not a universal size.

First identify the general profile of your toilet. Then measure the width, length, fixing points and available clearance before comparing those details with a replacement seat.

If you're checking compatibility with a specific water-powered model, view the Conor Elara D-Shape product specifications.

If your toilet turns out to have a rounded profile instead, view the O-Shape Elara model.
